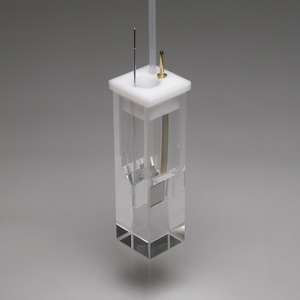

Spectroelectrochemical Cell
The relation between absorbance and potential for reversible or
quasi-reversible system is theoretically elucidated, on which basis
the analysis of electrochemical characteristics becomes possible for
the system otherwise difficult with only the result of voltammogram.
A typical example is redox enzyme cytochrome c and methylene-blue.
- Real-time monitoring of chromatic change by red-ox reaction
- Analysis of the charge transfer at the electrode/liquid surface
- Spectrometric measurement of near/surface of electrodes
- Absorbing spectrum of the product and intermediate
- Parameters; concentration, diffusion coefficient and life time
| Catalog No. | Description | |
| 011546 | SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell Kit | |
| Components | ||
| 011547 | SEC-C Pt Gauze working electrode | |
| 011548 | SEC-C Pt counter electrode | |
| 011549 | SEC-C Thin Layer Quartz Glass cell | Light pass length: 1 mm |
| 011550 | SEC-C Teflon Cap | |
| 010588 | Purging tube | |
| Optional Electrode | ||
| 011857 | SEC-C Au Gauze working electrode | |
| 011547 | SEC-C Pt Gauze working electrode | |
| 010248 | RE-1B Silver-Silver chloride reference electrode | |
| 012042 | RE-7 Non Aqueous reference electrode(Ag/Ag+) | |
*RE-5 Non Aqueous reference electrode(Ag/Ag+) was remodeled to RE-7.
Reference Electrode can be chosen optionally from below:
| Catalog No. | Description | ||
| 010248 | RE-1B Silver-Silver chloride reference electrode | Length: 80.0 mm |
OD: 6.0mm |
| 012042 | RE-7 Non Aqueous reference electrode(Ag/Ag+) | Length: 80.0 mm |
OD: 6.0mm |
Click
to Enlarge[Front View]
Click
to Enlarge[Side View]
Working Electrode for SEC-C
Click
pthoto to Enlarge011857 SEC-C Au Gauze working electrode
011547 SEC-C Pt Gauze working electrode
