Model 1000A Series Multi-Potentiostat       <<Home

The model 1000A series is a computerized 8-channel potentiostat. The system contains a digital function generator, a multiplexed data acquisition circuitry, a multi-potentiostat with eight working electrodes, one common reference electrode and one common counter electrode. The instrument is designed so that eight working electrodes are in the same electrochemical cell. The potential control range is 3.276 V for the primary channel and 2.0 V for the rest of the seven channels. Any of these seven channels can also be set at the identical potential as the primary channel with potential range of 3.276 V, so that they can sweep or step potentials together with the primary channel. Each electrode can be individually controlled, including on/off control, potential and sensitivity settings. However, the primary channel is always on during data collection. The current range is 10 mA. The instrument is capable of measuring current down to the picoampere level.

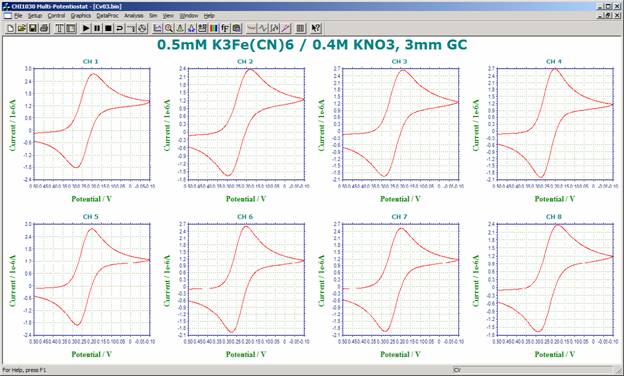

                Besides the commonly used cyclic voltammetry and amperometric i-t measurements, many other electrochemical techniques are available in the 1000 series. All eight channels can be used for various electrochemical techniques, except open circuit potential measurements. The parameters for all the channels should be set before running experiments. You can not alter the parameter setting during experiments. During run, you can alter display mode between single data set display and multi-set data display (either parallel or overlay plots). After a run, you can choose data sets of any channels as parallel plots or overlay plots.

                The instrument is controlled by an external PC under the Windows 95/98/NT/Me/2000/XP environment. The instruments are easy to install and use. No plug-in card or other hardware is required on the PC side. The commands, parameters, and options are in terminology that most chemists are familiar with. The toolbar allows quick access to the most commonly used commands. The systematic and complete help system provides context-sensitive help.

                The instrument provides many powerful functions, such as file handling, experimental control, graphics, data analyses, and digital simulation. Some of the unique features include macro command, working electrode conditioning, color, legend and font selection, data interpolation, visual baseline correction, data point removal, visual data point modification, signal averaging, Fourier spectrum, and equations relating to electrochemical techniques. The maximum data length is 128K 4096K points (selectable) if real-time data transfer is allowed. The software is 32-bit version and has a multi-document interface.



Specifications



8-Channel potentiostat

Potential range (primary channel):  3.275 V

Potential range (channel 2-8):  2.0 V

Compliance voltage:  12 V

Current range (each channel):  10 mA

Reference electrode input impedance:  11012 ohm

Sensitivity scale:  110-9 - 0.001 A/V in 7 ranges

Input bias current:  < 50 pA

Current measurement resolution:  < 5 pA

Data acquisition: 16 bit @ 5 kHz maximum



CV and LSV scan rate:  0.000001 to 5 V/s

CA and CC pulse width:  0.01 to 1000 s

CA and CC Steps: 320

DPV and NPV pulse width:  0.005 to 10 s

SWV frequency:  1 to 250 Hz

Current low-pass filters

Potential and current analog output

Cell control: purge, stir, knock

Maximum data length:  128000 points each channel

Chassis dimension:  12.5(W) 11(D) 4.75(H)





Differences Between 1000A Series Models



Functions

1000A

1010A

1020A

1030A

1040A

Cyclic Voltammetry (CV)

l

l

l

l

l

Linear Sweep Voltammetry (LSV) &

l

l

l

l

l

Chronoamperometry (CA)







l

l

Chronocoulometry (CC)







l

l

Differential Pulse Voltammetry (DPV) &





l

l

l

Normal Pulse Voltammetry (NPV) &





l

l

l

Square Wave Voltammetry (SWV) &





l

l

l

AC Voltammetry (ACV)



l

2nd Harmonic AC Voltammetry (SHACV)



l

Amperometric i-t Curve (i-t)

l

l



l

l

Differential Pulse Amperometry (DPA)



l



l

l

Triple Pulse Amperometry (TPA)



l



l

l

Sweep-Step Functions (SSF)







l

l

Multi-Potential Steps (STEP)







l

l

Open Circuit Potential - Time (OCPT)

l

l

l

l

l













Full version of CV simulator







l

l

Limited version of  CV simulator

l

l

l





&: Corresponding stripping mode can be performed.

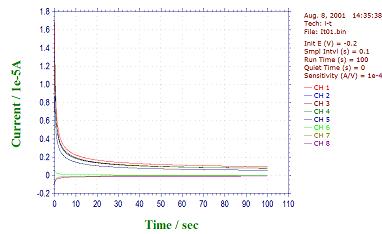

Overlay plot of 8 channel i-t Curve with different potential setting for each channel

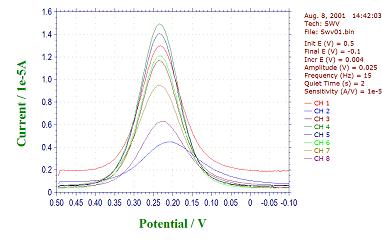

Overlay plot of 8 channel SWV with all eight channel potential scanned simultanousely
